THINBIT LGS58R 5/8 inch Right Hand Toolholder for Grooving & Threading

Description

Product Overview

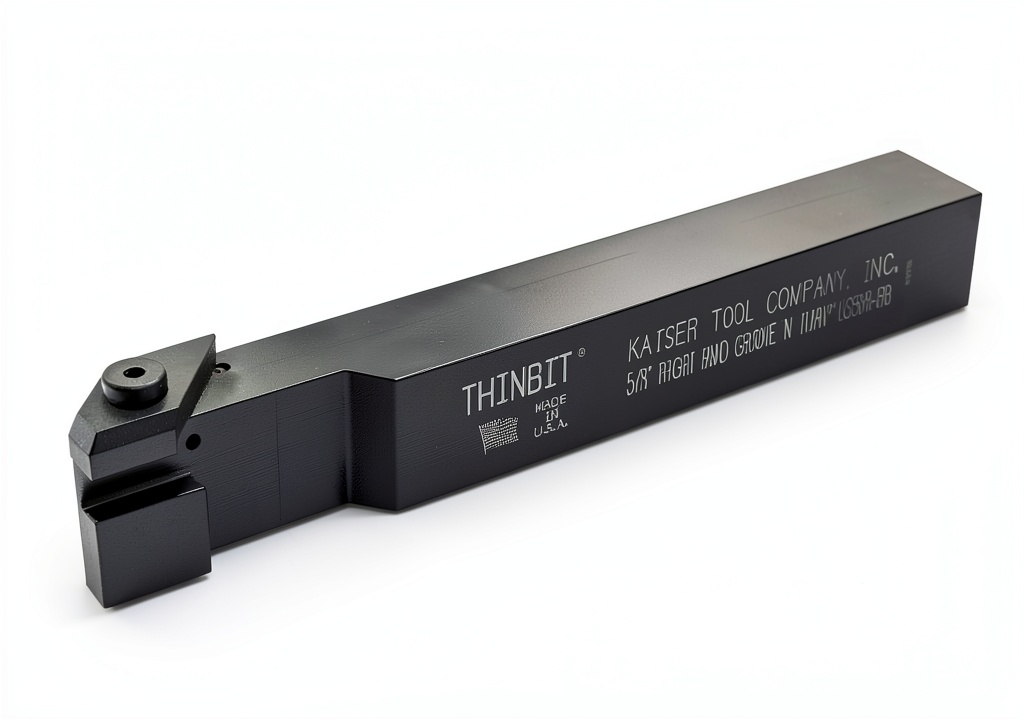

The THINBIT LGS58R is a premium 5/8 inch indexable insert holder designed for right‑hand orientation. Crafted from high‑grade alloy steel, this straight toolholder delivers exceptional rigidity and wear resistance, ensuring consistent performance across demanding machining applications. Its compact dimensions of 4.84 x 0.63 x 0.63 inches provide a low profile that fits seamlessly into tight tool setups while maintaining optimal chip flow. The holder is engineered to accommodate a wide range of grooving, face‑grooving, threading, and parting inserts, making it a versatile choice for CNC, Swiss, and conventional machining centers. With patented design features from U.S. Patents 6,688,816 and 6,824,333, the LGS58R offers enhanced stability and reduced vibration, translating into superior surface finish and extended insert life.

Usage

Designed for high‑precision environments, the LGS58R excels in aerospace, automotive, and medical device manufacturing where tight tolerances and repeatability are critical. Its right‑hand configuration aligns perfectly with standard insert geometries, allowing operators to quickly set up grooving, threading, or parting operations without additional adapters. The toolholder’s robust construction tolerates high spindle speeds and heavy cutting forces, making it suitable for both high‑speed machining and heavy‑duty material removal. Whether used on multi‑axis CNC mills, Swiss‑type lathes, or conventional turning centers, the LGS58R provides reliable clamping and easy interchangeability, reducing downtime and boosting productivity.

In addition to its mechanical strengths, the holder’s design promotes efficient chip evacuation, minimizing heat buildup and extending tool life. Operators appreciate the straightforward installation process, which requires only a simple torque setting to secure the insert, ensuring repeatable positioning and reducing the risk of misalignment. This ease of use, combined with its compatibility with a broad range of insert types, makes the LGS58R an ideal solution for shops seeking flexibility without compromising on performance.

Why Choose Us

Choosing the THINBIT LGS58R means selecting a product backed by decades of engineering expertise and a commitment to quality. Each toolholder undergoes rigorous testing in our state‑of‑the‑art facilities to verify dimensional accuracy, hardness, and balance. Our quality assurance program adheres to ISO 9001 standards, guaranteeing that every unit meets exacting specifications before it reaches the customer. We also provide comprehensive technical support, offering guidance on optimal insert selection, machining parameters, and maintenance practices to help you achieve the best possible results.

Beyond the product itself, THINBIT offers a responsive after‑sales service network. Our knowledgeable support team is available to address any questions, provide replacement parts, or assist with troubleshooting, ensuring that your operations remain uninterrupted. With a reputation for reliability and a focus on continuous improvement, THINBIT remains a trusted partner for manufacturers worldwide.

Key Features

• High‑grade alloy steel construction delivers superior rigidity and wear resistance for long tool life.
• Compact 5/8 inch size provides a low‑profile solution that fits tight tool setups while maintaining stability.
• Right‑hand orientation compatible with a wide range of grooving, threading, and parting inserts for versatile applications.
• Patented design reduces vibration and enhances chip evacuation, resulting in improved surface finish.
• Dedicated technical support and after‑sales service ensure reliable performance and quick issue resolution.

FAQ

What types of inserts are compatible with the LGS58R?

The LGS58R is compatible with standard right‑hand grooving, face‑grooving, threading, and parting inserts from major manufacturers. It accepts a variety of insert geometries, allowing you to select the optimal cutting shape for your specific application.

Can the toolholder be used on both CNC and conventional machines?

Yes, the LGS58R is designed for universal compatibility. Its straight design and standardized dimensions make it suitable for CNC mills, Swiss‑type lathes, and conventional turning centers, providing flexibility across different machining platforms.

How does the patented design improve machining performance?

The patented features incorporate optimized clamping geometry and mass distribution, which reduce run‑out and vibration during high‑speed operations. This leads to more consistent cutting, better surface finish, and extended insert life.

What maintenance is required to keep the toolholder in optimal condition?

Regular cleaning of the holder’s cutting edges and periodic inspection for wear or damage are recommended. Ensure that inserts are seated correctly and torqued to the manufacturer’s specifications to maintain accuracy and prevent premature wear.

Is technical assistance available for setup and optimization?

Absolutely. THINBIT provides comprehensive technical support, including setup guidelines, recommended machining parameters, and troubleshooting assistance. Our experts can help you maximize the performance of the LGS58R in your specific production environment.
