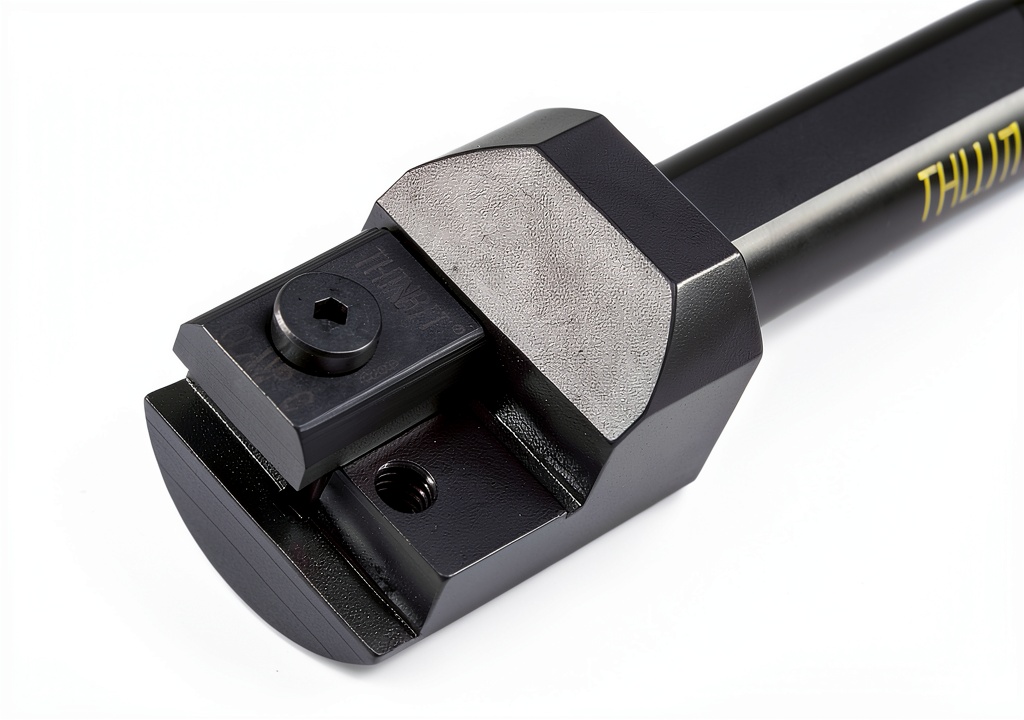

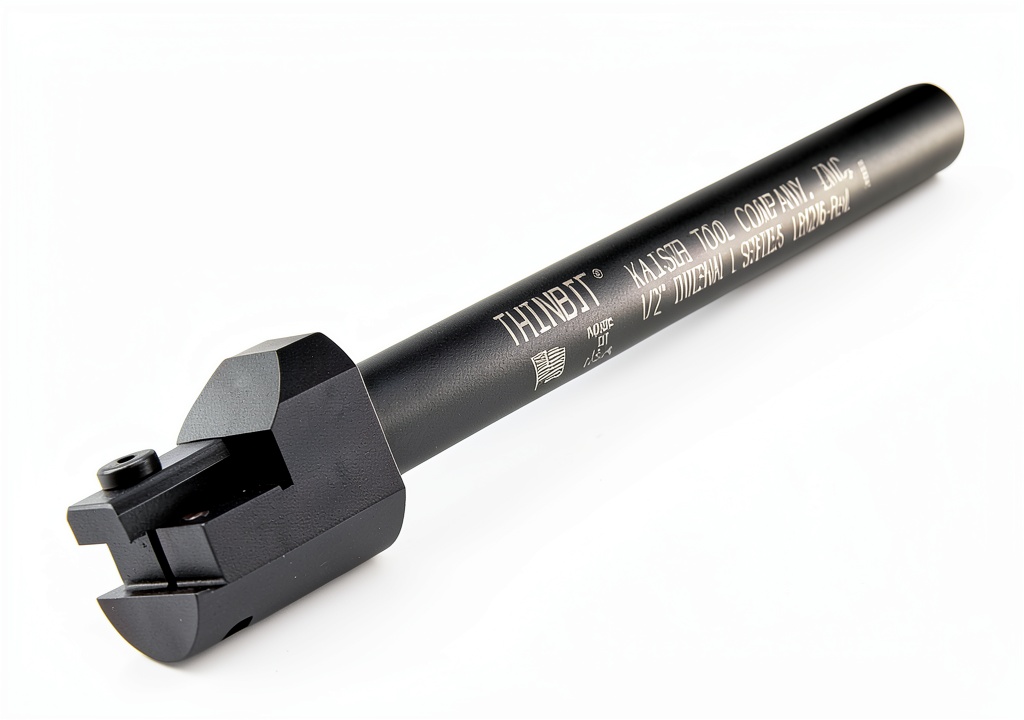

THINBIT LR1206 1/2″ Internal Toolholder Reversible Left/Right

Description

Product Overview

The THINBIT LR1206 is engineered as a 1/2 inch round internal toolholder that combines precision machining with versatile orientation options. Constructed from high‑grade alloy steel, the holder delivers exceptional rigidity and resistance to wear, ensuring consistent performance even under demanding cutting conditions. Its reversible design allows the user to switch between left‑hand and right‑hand insert configurations without changing the holder, reducing setup time and inventory complexity. The toolholder conforms to the Large series specifications and meets the exacting standards set by Kaiser Tool Company, providing a reliable platform for a wide range of indexable inserts.

The holder’s compact dimensions—5.5 × 0.5 × 0.5 inches—fit comfortably within tight machine envelopes while delivering the stiffness required for high‑speed turning, grooving, chamfering, and threading operations. The internal geometry is optimized for inserts that begin with the letter “L”, guaranteeing proper chip flow and minimizing vibration. Patented features, referenced in U.S. Patents 6,688,816 and 6,824,333, protect the unique clamping mechanism that secures inserts with uniform pressure, extending tool life and maintaining dimensional accuracy throughout the machining cycle.

Usage

The LR1206 excels in CNC, Swiss‑type, and conventional turning centers where internal shoulder machining is required. Its reversible orientation makes it ideal for applications that demand both left‑hand (M03 spindle rotation) and right‑hand (M04 rotation) cutting strategies, such as undercutting internal features or producing complex thread profiles. Operators can quickly select the appropriate hand orientation by rotating the holder, eliminating the need for separate left‑hand and right‑hand toolholders and streamlining tool changeovers.

In production environments, the toolholder’s robust construction reduces the risk of deflection during heavy cuts, delivering tight tolerances and smooth surface finishes on aerospace, automotive, and medical components. The ability to run a single holder with multiple insert types simplifies tool management, lowers inventory costs, and supports lean manufacturing initiatives. Its compatibility with standard 1/2 inch collet chucks ensures easy integration into existing machine setups without additional adapters.

Why Choose Us

Choosing the THINBIT LR1206 means selecting a product backed by Kaiser Tool Company’s decades of expertise in cutting tool technology. Each holder undergoes rigorous quality inspections, including dimensional verification, hardness testing, and dynamic balancing, to guarantee that it meets or exceeds industry specifications. The patented clamping system provides repeatable insert positioning, which translates into reduced cycle times and higher overall equipment effectiveness for your machining center.

Beyond the engineering advantages, customers benefit from comprehensive technical support and a responsive after‑sales service team. Whether you need assistance selecting the optimal insert, guidance on optimal cutting parameters, or troubleshooting advice, our specialists are available to ensure that your investment delivers maximum productivity. Additionally, the LR1206 is covered by a limited warranty that protects against material defects, reinforcing our commitment to durability and customer satisfaction.

Key Features

• Reversible left/right orientation eliminates the need for separate toolholders, saving space and reducing changeover time.
• High‑grade alloy steel construction offers superior rigidity and wear resistance for long tool life.
• Optimized internal geometry supports “L” series inserts, ensuring excellent chip evacuation and surface finish.
• Patented clamping mechanism provides uniform pressure, maintaining insert alignment for consistent accuracy.
• Backed by Kaiser Tool Company’s technical support and warranty, delivering reliable service and peace of mind.

FAQ

Can the LR1206 be used with both left‑hand and right‑hand inserts?

Yes. The reversible design allows you to rotate the holder to accommodate either left‑hand (M03) or right‑hand (M04) inserts without changing the toolholder.

What types of inserts are compatible with this toolholder?

The holder is compatible with grooving, turning, chamfering and threading inserts that begin with the letter “L”, covering a broad range of indexable cutting tools.

Is the toolholder suitable for high‑speed machining?

Its high‑grade alloy steel construction and rigid geometry provide the stiffness needed for high‑speed turning and threading while maintaining dimensional stability.

How do I change the orientation from left to right?

Simply loosen the clamping screw, rotate the holder to the opposite hand position, and retighten the screw to the recommended torque. The patented clamping system ensures consistent pressure after each change.
